The 3 ton overhead crane is a fixed, top-running or under-running bridge lifting system designed to handle a safe working load of 3,000 kg across industrial production and warehousing environments. Standard configurations cover a span range of 7.5 m to 28.5 m and lifting heights of 6 m, 9 m, 12 m, 18 m, or 24 m, accommodating most single-bay and multi-bay workshop layouts.
The 3 ton overhead crane is a lifting device. This equipment has a rated safe working load of 3,000 kilograms. Standard configurations include spans ranging from 7.5 to 28.5 meters and lifting heights from 6 to 24 meters, with duty classes A3 and A4. The equipment operates on a 380V/50Hz three-phase power supply and is designed for an operating temperature range of -20°C to +40°C. Control options include a floor-mounted pendant control box, a wireless remote control, and an enclosed operator’s cab. Typically, users operate this equipment to perform material-handling tasks in automotive assembly, steel-structure fabrication, and manufacturing.
The 3 ton overhead crane features a horizontal bridge girder structure. The equipment runs along two overhead rails, allowing the operator to lift loads of up to 3,000 kg. With a lifting capacity of 3 tons, this crane falls within the light-to-medium duty category, making it one of the most widely ordered bridge crane specifications globally. Additionally, the equipment features a compact design, making it suitable for installation in locations with limited headroom (typically 4 meters or more). As a result, manufacturers, workshops, and warehouses often choose it as their preferred solution. To meet users’ varying budgets and application needs, VOITTO Crane offers a selection of different types of 3-ton overhead cranes.
The overhead crane 3 ton category encompasses several structural variants, each engineered for specific headroom, duty, and budget requirements.
The LD-type 3-ton overhead crane features a single-girder design. It is typically equipped with a CD-type or MD-type wire rope electric hoist as its hoisting mechanism. This 3 ton overhead bridge crane is renowned for its smooth operation and excellent value for money. Users widely employ it in fields such as machinery manufacturing, equipment maintenance, warehousing and logistics, and metal processing to perform material handling operations.
Get QuoteThe HD-type 3 ton European overhead crane is designed in accordance with FEM/DIN standards. The equipment features a European wire rope hoist and a lightweight box-type main girder structure. Compared to the LD-type, the HD-type offers advantages such as lighter weight, higher clearance utilization, smoother operation, more precise positioning, and lower energy consumption. It effectively improves factory space utilization and reduces the load on the track beams.
Get QuoteThe LX-type 3-ton underslung suspension crane employs a lower-flange suspension system. The crane is suspended directly beneath the factory roof trusses or I-beam tracks, eliminating the need for separate track beams and columns. This design saves floor space, effectively reduces construction costs, and maximizes the utilization of workshop space. This equipment is particularly suitable for production workshops, warehouses, maintenance facilities, and assembly lines with smaller spans and lighter lifting requirements.
Get QuoteThe LB explosion-proof electric overhead travelling crane is specifically designed for flammable and explosive environments. Equipped with an explosion-proof electric hoist, explosion-proof motor, explosion-proof electrical components, and a spark-proof hoisting mechanism, this equipment effectively prevents explosions caused by electrical sparks or high temperatures during operation. Users employ this equipment to perform material handling tasks in petrochemical, natural gas, paint and coatings, pharmaceutical, dust handling, and hazardous chemical storage facilities.
Get QuoteA low-headroom overhead travelling crane is a type of lifting equipment specifically designed for applications where factory ceiling heights are limited. Its electric hoist is mounted on one side of the main girder in an offset or low-headroom configuration. Compared to LD-type single-girder overhead cranes, low-headroom models can increase the effective lifting height by approximately 200–500 mm or even more, maximizing the use of vertical space without altering the factory structure.
Get Quote

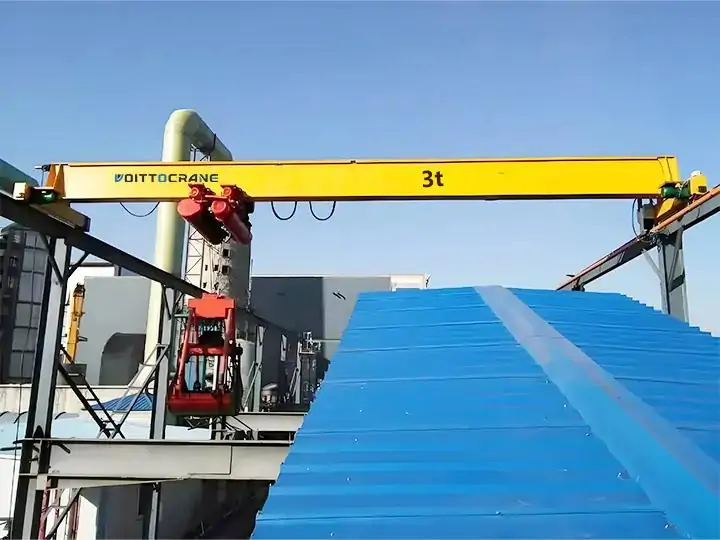

A grab overhead bridge crane is equipped with a grab as its lifting attachment. This equipment uses the grab to perform the handling, transportation, loading, unloading, and stacking of bulk materials, eliminating the need for direct manual involvement in the loading process. Typically, this equipment is widely used in power plants, ports, steel mills, cement plants, waste treatment facilities, mines, and coal storage and transportation operations. Grab bridge cranes can significantly reduce labor costs and improve loading and unloading efficiency, making them the preferred solution for modern bulk material handling systems.
Get QuoteEach 3 ton electric overhead travelling crane incorporates design features that ensure safe, efficient, and long-service operation across diverse industrial environments.
The load capacity of a 3 ton bridge crane is sufficient to meet the material handling needs of light- to medium-duty manufacturing environments. Below, I will list some examples of application scenarios.
The table below lists the specifications for a 3 ton overhead bridge crane as required by the standard. VOITTO Crane can provide customized specifications based on the user’s operating conditions.
| Parameter | Specifications |
|---|---|
| Rated Capacity (SWL) | 3 t |
| Span Length | Standard 7.5 m – 28.5 m (custom spans available) |
| Lifting Height | 6 m / 9 m / 12 m / 18 m / 24 m |
| Work Duty Classification | A3 / A4 (FEM 1.001 Group 3–4) |
| Power Supply | 380 V / 50 Hz / 3-Phase (custom voltage on request) |
| Hoist Speed | Standard 4/1 m/min (2-speed) or VFD stepless |
| Trolley Travel Speed | 20 m/min (single-girder); 20/5 m/min (double-girder) |
| Bridge Travel Speed | 20 m/min standard; up to 40 m/min for long spans |
| Work Environment Temp. | -20 °C to +40 °C |
| Relative Humidity | ≤ 85 % (non-condensing) |
| Control Mode | Floor pendant / Radio remote control / Cabin |
| Hoist Motor Insulation | Class F (IEC 60034-1); IP55 enclosure (IEC 60034-5) |
| Design Life | ≥ 12,500 h at A3 duty — EN 13001-1 S3 spectrum |
| Standards Compliance | CE (2006/42/EC), ISO 9001:2015, FEM 1.001, EN 15011, IEC 60204-32, GB/T 14405 |
A complete 3-metric-ton overhead crane system consists of the following major components, which work together to lift materials.
The price of a 3 ton overhead crane varies depending on its configuration, span, lifting height, control method, and local installation requirements. The table below lists the reference price ranges for common configurations. All quotes are in U.S. dollars (USD) on an ex-works (EXW) basis; shipping, installation, and commissioning costs are not included.
| Type | Lifting Capacity | Span Range | Reference Price (USD) |
|---|---|---|---|
| LD Single Girder Overhead Crane | 3t | 7.5-28.5 m | $2,500 – $6,500 |
| HD European Bridge Crane | 7.5-26.5 m | $4,500 – $10,000 | |
| LX Underhung Crane | 7.5-21.5 m | $3,000 – $7,500 | |
| LDP Low-headroom Overhead Travelling Crane | 7.5-27.5 m | $3,500 – $8,500 | |
| LB Explosion-proof EOT Crane | 7.5-28.5 m | $6,000 – $15,000 | |
| LDZ Grab Overhead Crane | 7.5-28.5 m | $12,000 – $35,000 |
When selecting a 3 ton overhead crane, buyers should not only consider the unit price but also evaluate the technical sophistication, certification traceability, and after-sales support capabilities. Since 2005, VOITTO Crane has supplied crane equipment to industrial customers in more than 60 countries worldwide, with over 15,000 units installed across sectors such as automotive manufacturing, steel, power generation, and logistics.
Whether you are purchasing a single 3 ton overhead bridge crane for a new workshop or configuring a complete set of lifting equipment for a new factory, the VOITTO Crane team can provide technically sound and highly competitive solutions, along with a 12-month warranty on all mechanical and electrical components. Please feel free to contact us for more details.
Alan
Crane Solutions Specialist · Voitto Crane
Specialized in Overhead Crane, Gantry Crane, Jib Crane, Port Crane & EOT Crane export solutions. 10+ years helping global clients with pre-sales consultation, capacity selection and site-specific configurations.
Standard spans for a 3 ton overhead crane run from 7.5 m to 28.5 m in 1-metre increments, covering the majority of single-bay industrial buildings.
Installation of a single-girder 3 ton overhead crane in a building with pre-prepared runway beams typically takes 2–4 days for a trained two-person crew. However, if runway steel fabrication and civil anchoring are included, total site time increases to 7–14 days.
Yes — outdoor-rated 3 ton overhead cranes are available with IP65 motor enclosures, hot-dip galvanised structural components, and stainless-steel fasteners to resist corrosion. The standard indoor specification supports up to 85 % relative humidity at temperatures from -20 °C to +40 °C, as defined in GB/T 14405 and FEM 1.001 environmental class E2.
Radio remote control is generally the most practical option for busy workshop environments because it allows the operator to move freely with the load, maintaining clear sightlines and avoiding pendant cable hazards. However, floor pendant control remains standard where radio interference is a concern, while cabin control is selected for long-span cranes exceeding 20 m where floor-level visibility is insufficient.
Our pre-sale team provides consultations, tailoring solutions to your needs and environment.
Offer customization options for lifting capacity, span and lifting height etc. to meet specific needs.
Real-Time Progress Updates: Weekly reports and PM communication.
Pre-Delivery Testing: 100% load & safety checks, detailed reports.
3-5 years warranty and free replacement for non-manufacturing defects.
24/7 online support and on-site assistance for crane issues.
A: Consider these factors:
Load Capacity (Max weight to lift, including rigging).
Span Width (Distance between runways).
Lifting Height (Hook path elevation).
Duty Cycle (Frequency of use: light, moderate, or severe service).
Power Supply (Electric, manual, or hybrid options).
For more detailed answers, please contact our engineers as soon as possible. Our engineers will be based on your use of the scene to give you the most professional program for you to choose!
The price of an overhead EOT crane ranges from $ 1,550 to $ 353,500. Usually, the price is determined by the configuration. Contact us now to get a more professional quote!
Our overhead cranes are suitable for use in a variety of industries, including manufacturing, construction, metallurgy, logistics, and transportation etc. We specialize in providing customized solutions to multiple industries.
Yes, we can customize an overhead crane to meet your specific business needs. We can design and manufacture complete crane systems or upgrade existing systems.
