A straddle carrier crane is a mobile lifting equipment specifically designed for moving and stacking containers. Users utilize it in port terminals, container yards, manufacturing industries, and large logistics centers.
A straddle carrier crane is a self-propelled lifting device that moves on rubber tires. Operators use this equipment to lift 20-foot, 40-foot, or 45-foot containers. The container straddle carrier crane has a load capacity ranging from 35 to 80 tons, a maximum lifting height of up to 13 meters, and the ability to stack containers in 2 to 4 layers. Certified to CE, ISO 9001, and EAC standards, this equipment is widely used in port terminals, intermodal rail yards, and heavy manufacturing plants.
A straddle carrier crane is a mobile lifting equipment specifically designed for moving and stacking containers. Users utilize it in port terminals, container yards, manufacturing industries, and large logistics centers. The straddle carrier crane is designed with a “gantry” structure, which allows it to straddle materials directly and lift, transport, and stack goods from the ground to a designated location using a spreader.
The machine is equipped with four to eight large tires, enabling it to maneuver with ease in paved yards, at the dockhead, and within the confined spaces of ship holds. Its effective internal clear width ranges from 3,100 mm to 3,750 mm, which is sufficient to span standard 20-foot or 40-foot containers while leaving ample safety clearance on both sides.
Straddle Carrier Crane
Container Straddle Carrier
A Straddle carrier crane is highly flexible and can handle goods in any complex environment. It is equipped with functions such as straight-line, inclined-line, and Ackerman steering, among others. It has a safety indication and an overload protection device. The electrical drive adopts full digital AC frequency conversion, PLC control, constant power speed regulation, and other technologies.
These straddle carrier cranes can be classified based on their power source. Therefore, before making a purchase, users should carefully consider the specific conditions at ports and rail freight yards to select the appropriate model, as this will directly impact operational efficiency and total lifecycle costs.

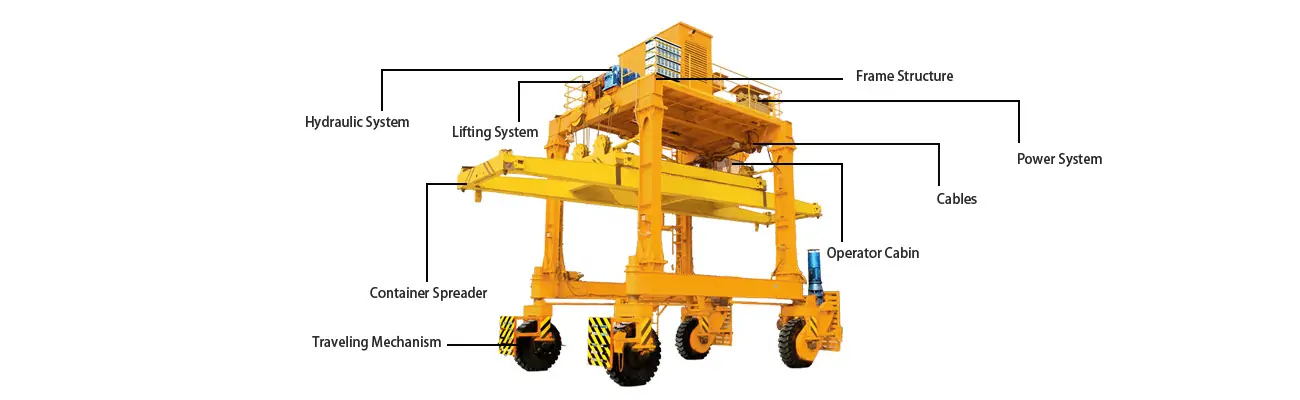

This container straddle carrier consists of a frame structure, spreader, traveling mechanism, lifting system, power system, hydraulic and control system, safety devices, and other components. The following is an introduction to each component of the container straddle carrier crane:
Users can choose to equip the straddle carrier with 20-foot, 40-foot, telescopic, single-box, double-box, electric, or hydraulic types of spreaders, depending on the size of the cargo being lifted.
The container spreader serves as the critical interface between equipment and containers. Therefore, selecting the correct type of spreader directly determines loading and unloading speed, container compatibility, and maintenance frequency.
20ft Fixed Spreaders
40ft Fixed Spreaders
20&40ft Telescopic Spreaders
Heavy Load Spreader
A straddle carrier crane combines mobility, lifting capacity, and stacking capability, making them suitable for a wide range of heavy-duty logistics applications.
Each machine incorporates multiple engineering systems working in parallel. Therefore, understanding the individual features helps operators and procurement teams match the equipment to their specific duty cycle.
1. This equipment employs a fully digital AC variable-frequency drive system combined with PLC control technology to achieve constant-power speed regulation.
2. Features a high-strength steel gantry frame structure manufactured to FEM 1.001 structural class requirements.
3. A modular component layout houses the power unit, hydraulic unit, and electrical control cabinet in separate compartments.
4. Features anti-tipping geometry, anti-collision sensors, and emergency braking functions.
5. Equipped with an overload protection system that automatically disconnects the hoisting circuit when the load reaches 110% of the rated capacity.
6. The cab’s ergonomic design complies with the ISO 11228 standard for operator workstations; it is fitted with panoramic windows and a high-performance air conditioning system (HVAC), capable of operating within a wide ambient temperature range of -20°C to +50°C.
7. This device offers optional remote control solutions and an autonomous driving upgrade path, enabling the device to undergo gradual automation upgrades.
To accommodate the narrow storage yards in ports, the need for easy manoeuvrability in railway logistics yards, high-density stacking, and frequent transhipment, the straddle carrier manufacturer has equipped the straddle carriers with six different steering modes.
Multidirectional in 4 Directions
Front Wheel Drive Steering
90° Steering
Carousel Steering
Crab-wise Steering
Rear Wheel Drive Steering
All models are designed and tested to ISO 9001:2015 quality management requirements and certified to CE and EAC. FEM 1.001 structural load classifications apply to the portal frame design.
| Model | MST3531 | MST6037 | MST8037 |
|---|---|---|---|
| Capacity | 35t | 60t | 80t |
| Length×Width×Height | 9200×5100×5500mml7110×5100×6100mm | 9250×5700×6350mm | 12500×6000×6350mm |
| Effective inner width | 3100mm | 3750mm | 3750mm |
| wheel base | 6010mm | 6600mm | 7400mm |
| Duplex Lifting Height | N/A |1550mm | 1750mm | 1750mm |
| Max. Lifting Height(Below spreader) | 4600mm|6150mm | 6300mm | 6300mm |
| Min. Ground Clearance | 230mm | 310mm | 310mm |
| Tire Qty | 4 | 4 | 8 |
| Deadweight(not contain spreader) | 19T/21T | 35T | 45T |
| Empty -load max. speed | 115m/min | 80m/min | 80m/min |
| Full Hoad max. speed | 80m/min | 50m/min | 50m/min |
| Turning Radius | 6950mm | 8900mm | 13000mm |
| No-load/full-load Gradeability | 6%/3% | ||
| Control mode | Cab or remote control | ||
| Tires | solid tire | ||
| Lifting Tools | Chain+Lock+Automatic Spreader | Oversized Load Spreader | |
Customers looking to purchase a container straddle carrier crane should focus on evaluating three key factors: whether the rated lifting capacity meets their requirements for the maximum gross weight of the containers, whether the stacking height is compatible with the available space in the yard, and whether the power source configuration is compatible with the on-site infrastructure.
VOITTO Group is a leading supplier and manufacturer of straddle carrier cranes in China, with all products having international certifications such as ISO, CE, and GOST. With advanced design concepts, sophisticated manufacturing processes, and strict quality control, VOITTO has established strategic partnerships with over 70 countries worldwide.
VOITTO can provide customized container straddle carrier solutions with different tonnages (30-80 tons) and drive modes (electric/diesel/hybrid) according to customers’ needs. If you need port crane products, contact us.
Alan
Crane Solutions Specialist · Voitto Crane
Specialized in Overhead Crane, Gantry Crane, Jib Crane, Port Crane & EOT Crane export solutions. 10+ years helping global clients with pre-sales consultation, capacity selection and site-specific configurations.
Standard models handle 35 t, 60 t, and 80 t. The 80-tonne MST8037 variant is designed for fully loaded 40 ft heavy-lift containers.
A straddle carrier is a self-contained mobile vehicle that straddles a single lane and lifts the container directly. An RTG (rubber-tyred gantry) crane, however, spans multiple container rows and uses a trolley-hoist mechanism, making it better suited for high-density block stacking over 6 rows wide.
Yes. The telescopic spreader option extends to 45 ft, compatible with European pallet-wide containers to ISO 668. Therefore, terminals handling a mixed fleet of 20 ft, 40 ft, and 45 ft units can operate a single spreader type across the entire fleet.
All-electric drive is strongly recommended for enclosed or partially enclosed facilities, as it produces zero tailpipe emissions and significantly reduces noise levels compared to diesel. Moreover, regenerative braking returns energy to the battery during lowering cycles, cutting energy consumption per lift by up to 25%.
Both options are supported. Remote control (via encrypted 2.4 GHz radio link) allows one operator to manage the crane from a ground-level position. Autonomous driving capability is available as a retrofit package compatible with standard yard operating systems (YOS), enabling semi-automated or fully automated operation as the terminal’s infrastructure develops.
Our pre-sale team provides consultations, tailoring solutions to your needs and environment.
Offer customization options for lifting capacity, span and lifting height etc. to meet specific needs.
Real-Time Progress Updates: Weekly reports and PM communication.
Pre-Delivery Testing: 100% load & safety checks, detailed reports.
3-5 years warranty and free replacement for non-manufacturing defects.
24/7 online support and on-site assistance for crane issues.
Transit time varies depending on many factors, including the destination of the goods, distance, shipping method and shipping service provider, etc. Generally speaking, international shipping may take about a month.
We offer comprehensive after-sales service, including regular maintenance, rapid technical support, and spare parts supply. The standard warranty period is 1 year, with options for extension based on your needs.
All parts of our gantry cranes come with a one-year warranty.
We also provide online customer service, ready to solve your problems at any time, and after-sales documentation support.
If the problem is still not solved, we can appoint our engineers to your site.
Yes, our gantry cranes can be used stably in harsh environments such as strong winds or low temperatures due to their special construction and material structure.
