What is an Electric Winch?

This electric winch is a motorized mechanical device. It utilizes an electric motor to drive a drum, winding steel cables or ropes to generate traction for moving or lifting heavy loads. Whether you are planning to purchase lifting equipment, managing a vessel, or overseeing operations at a construction site, an electric winch offers an ideal solution that is both reliable and easy to operate.

This guide aims to address the most frequently asked questions raised by purchasing and operations personnel. Its content covers topics ranging from basic definitions and comparisons with hydraulic winches to pricing and beyond. Please read on.

What is Electric Winch?

An electric winch is a mechanical traction device driven by an electric motor. This device is typically powered by a 12V or 24V DC battery. The electric motor drives a planetary gearbox, which amplifies the torque and transmits the rotational force to the drum. As the drum rotates, it winds up the steel cable. Typically, users utilize it to perform lifting and towing tasks in environments such as construction sites, factory production facilities, warehousing and logistics centers, and equipment installation sites.

Rated Line Pull

The most important technical specification is the rated load capacity, measured in pounds (lbs) or kilograms (kg). This value represents the load capacity of the first layer of wire rope on the drum. With each additional layer of wire rope wound onto the drum, the tensile strength decreases by approximately 10% to 15%, as the effective lever arm increases with the stacking of the wires. A common rule of thumb is to select a winch with a rated pulling capacity of 1.5 times the vehicle’s total weight.

What is an Electric Winch Used For?

The primary application areas for electric winches are concentrated in off-road recovery, marine and offshore operations, as well as industrial or construction lifting.

Industrial Crane Equipment and Material Handling: In the fields of construction and warehouse logistics, electric hoists and electric winches are utilized to transport materials along production lines, assist with loading dock operations, and integrate into crane systems. These systems adhere to the FEM 1.001 standard for industrial lifting equipment or comply with local regulatory requirements based on the ISO 4301 standard.

Marine and Maritime Operations: Users employ marine winches to deploy and retrieve anchor chains and mooring lines, as well as to assist with trailer loading operations. In the marine sector, synthetic fiber ropes are generally preferred over steel cables, as they are buoyant and, unlike steel cables, do not store dangerous potential energy under tension.

Off-Roading and Vehicle Recovery: Electric winches are typically mounted on the front or rear bumpers of pickup trucks, SUVs, and all-terrain vehicles (ATVs). In vehicle recovery scenarios, a steel cable is attached to a tree saver strap or a fixed anchor point. The winch then applies a pulling force to extract the stranded vehicle from its predicament.

How Does an Electric Winch Work?

Understanding how it works helps users operate the winch safely.

The Motor and Gearbox System

When the user operates the remote control or toggle switch, current flows from the battery to the solenoid valve control unit. The solenoid valve transmits power to the motor, causing it to rotate at extremely high RPM, though the torque generated at this stage is relatively low. The planetary gearbox then converts this “high-speed, low-torque” rotational motion into “low-speed, high-torque” output power. All electric winches utilize a three-stage planetary gear transmission system. Each stage of transmission further amplifies torque. For a deeper breakdown of how each component contributes to this sequence — including how the brake automatically engages when power is cut, what determines line pull across drum layers, and the safety systems that prevent overload — see our guide on how an electric winch works.

The Automatic Load-holding Brake

When the user releases the switch, the brake automatically engages without requiring any action from the driver. Typically positioned between the motor and the gearbox, this brake mechanically clamps the drive shaft the moment the motor current is interrupted. Even in the event of a power failure, the load remains suspended or stationary.

Heat and Duty Cycle

Electric winches generate heat during operation under load. When the equipment is engaged in high-intensity, continuous pulling operations—particularly when the drum is fully capacity—users must strictly adhere to the prescribed duty cycle specifications. Exceeding the specified duty cycle may damage the motor windings or cause burnout of the solenoid valve.Staying within that duty cycle in practice comes down to operating habits — how the controls are pressed, how the load is anchored, and how the cable is managed during the pull. The step-by-step guide to using an electric winch walks through anchor point selection, the intermittent-press technique that gives the motor cooling intervals, and the warning signs that mean it’s time to stop and let the motor cool.

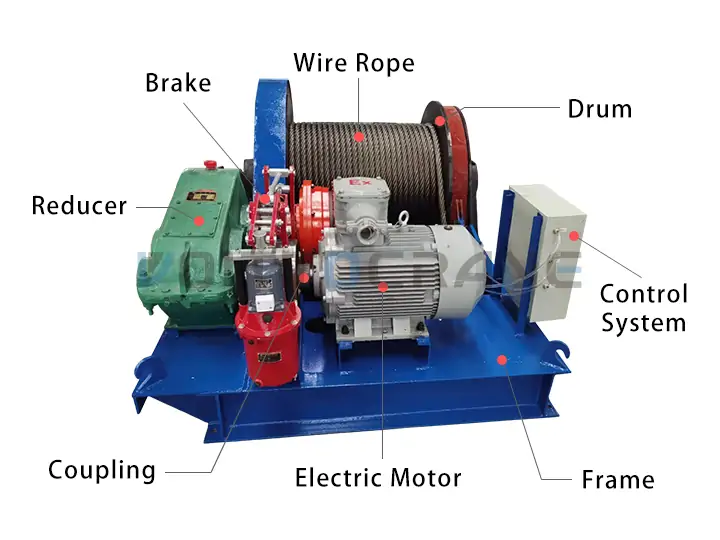

Electric Winch Parts

An electric winch typically comprises an electric motor, a reducer, a drum, a wire rope, a brake, a frame, and an electrical control system. Below, I will describe the function of each component.

• Electric Motor: This component converts electrical energy into mechanical energy, driving the mechanism’s operation.
• Reducer: This component converts the motor’s high-speed rotation into a low-speed, high-torque output.
• Drum: It is responsible for winding the steel wire rope, facilitating the lifting or towing of heavy loads through rotation.
• Wire Rope: This component directly bears the load and possesses high strength and flexibility.
• Brake: This component provides rapid braking during stops or in the event of a power failure.
• Frame/Base: This component supports and secures the various parts, bearing the entire weight of the machine.
• Electrical Control System: This system manages the equipment’s startup, shutdown, speed regulation, and safety protection functions.

Hydraulic Winch vs Electric Winch

The choice between hydraulic and electric frequently comes up for commercial truck operators, heavy equipment users, and serious off-road enthusiasts. Both technologies have genuine strengths — neither is universally superior.

Side-by-side Comparison

When to Choose Electric

Electric winches are the right choice for most light-to-medium applications: personal vehicles, boats under 40 feet, and intermittent industrial tasks. They’re easy to install, widely available, and competitively priced. If power-off operation is critical — say, you’re winching your vehicle out of a ditch with a dead engine — only an electric winch can do the job from a standalone battery.

When to Choose Hydraulic

For heavy commercial recovery trucks, large vessels, logging equipment, and any application requiring extended continuous pull at maximum load, hydraulic winches are the professional standard. Their ability to handle sustained loads without overheating is the deciding factor. Many tow truck operators run both a hydraulic underlift and an electric winch for additional cable work.

Electric Winch Price

Price variation in the electric winch market is wide. Entry-level consumer models and heavy industrial units occupy completely different segments. Below, we have listed some sample prices for reference only — the final quotation will be tailored to your exact requirements.

Conclusion

An electric winch is a mechanical tool used by operators for towing, rescue operations, and lifting materials. Whether you are purchasing an off-road winch or devising a specific plan for an industrial lifting project, rather than blindly chasing the lowest price, it is far wiser to prioritize selecting a load capacity that aligns with your application requirements, ensuring superior manufacturing quality, and verifying compliance with safety certification standards. This constitutes a more prudent and forward-looking decision.

If you are looking for electric winch solutions, please contact us immediately to receive expert guidance and a customized quote.

Alan

Crane Solutions Specialist · Voitto Crane

10+Years Exp.

5,000+Customers

50+Countries

Specialized in Overhead Crane, Gantry Crane, Jib Crane, Port Crane & EOT Crane export solutions. 10+ years helping global clients with pre-sales consultation, capacity selection and site-specific configurations.

+86 136 3963 3287 [email protected] Contact Us

FAQ

What is the minimum battery size recommended for a 9,500 lb electric winch?

A dedicated deep-cycle battery of at least 650 CCA (cold cranking amps) is recommended. Many experienced users add a secondary battery in a dual-battery system to prevent the winch from draining the starter battery during extended recovery operations.

Can an electric winch be used vertically to lift loads?

Standard vehicle recovery winches are not designed for vertical lifting and should not be used as substitutes for hoists or cranes. Purpose-built electric hoists carry ratings for vertical lifting and comply with relevant lifting equipment standards (e.g., ASME B30.7 in the US, EN 14492-2 in Europe). The key difference is that hoists incorporate power-off load brakes rated for vertical suspension.

What is the difference between a winch and a hoist?

A winch is designed for horizontal or inclined pulling. A hoist is engineered specifically for vertical lifting and incorporates braking systems that can safely hold a suspended load with power off. Mixing these applications creates serious safety hazards.

How often should I inspect my electric winch cable?

Steel wire rope should be inspected for broken strands, kinks, and corrosion before each use in demanding applications. A full inspection every 3 months or every 50 operating hours is a common standard in industrial settings. Replace the steel cable immediately if more than 10% of the wires in any lay length are broken. Synthetic rope should be inspected for cuts, abrasion, and UV degradation, and replaced every 3–5 years regardless of apparent condition in high-UV environments.

Why does my electric winch pull weaker than the rated capacity?

Rated line pull always refers to the first layer of wire on an empty drum. Each additional layer of cable wrapped on the drum increases the drum diameter and reduces the pulling force. At the fourth layer, capacity can be 30–40% below the rated single-layer figure. The solution: use a longer cable and plan anchor points to keep most of the rope paid out during a heavy pull.

What’s the lifespan of an electric winch?

A mid-range consumer winch used occasionally for off-road recovery can last 10–15 years with proper maintenance. Industrial winches in continuous service environments are typically rated for defined service life in operating hours (e.g., 1,600–3,200 hours per FEM duty class). The motor brushes and solenoid contacts are the most common wear items on brush-type motors and should be checked annually in regular-use applications.
